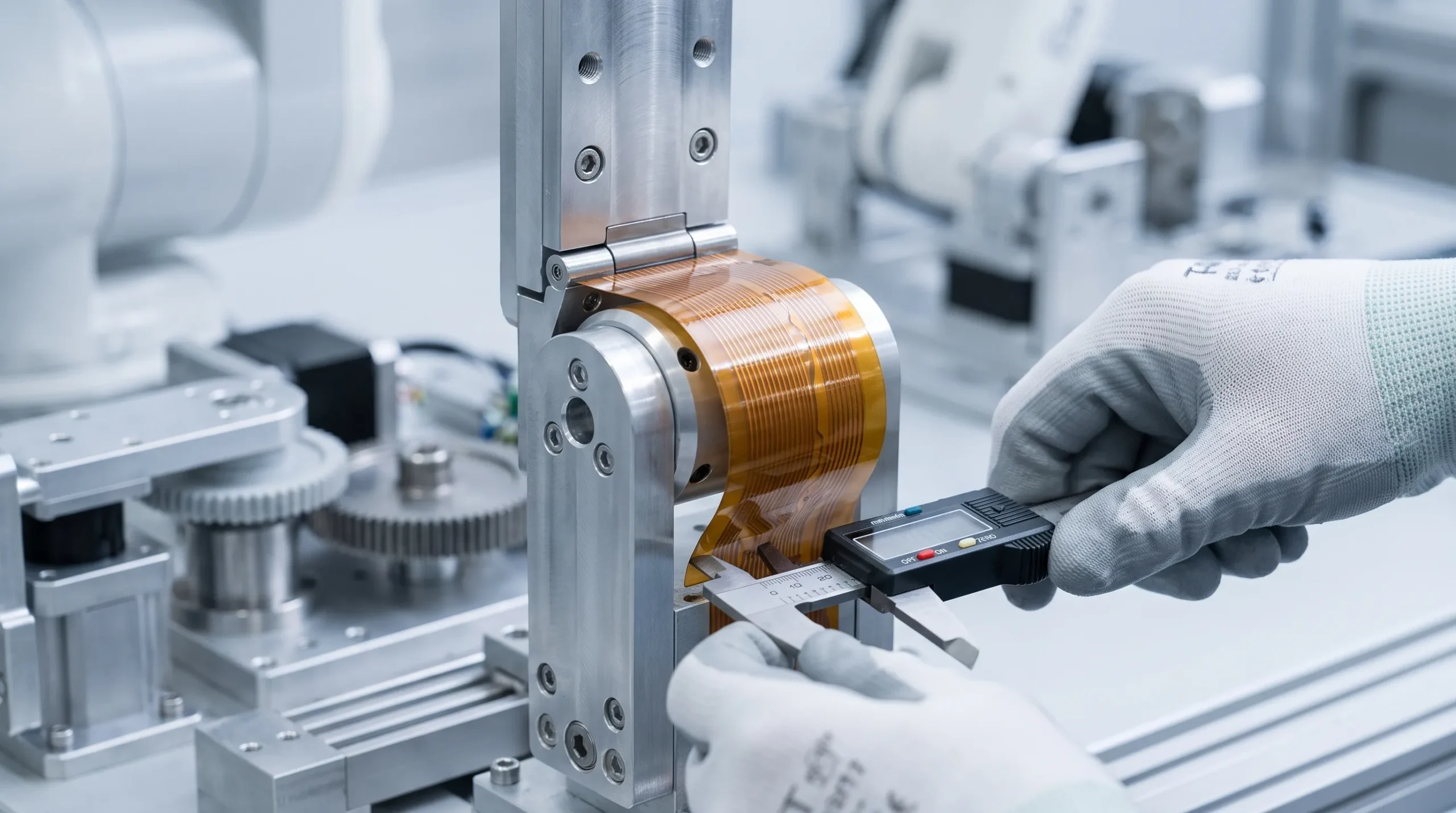

A flexible circuit board can solve problems that rigid PCBs and wiring looms cannot. It can reduce weight, fit electronics into tight three-dimensional spaces, simplify assembly and survive movement between parts of a product. But a reliable flexible circuit is not just a thin PCB. It is an electrical interconnect, a mechanical spring, a manufacturing process and often part of the enclosure strategy at the same time.

For engineering managers, CTOs and product teams in machine building, robotics, automotive, maritime, defence and high-tech equipment, the main challenge is not making a flex circuit work once in the lab. The challenge is making it work safely and repeatably in real products, under vibration, temperature changes, moisture, handling, maintenance and volume manufacturing constraints.

If you are still deciding whether a flex or rigid-flex architecture is the right choice, it is worth first reviewing when flexible PCBs make sense in product design. Once the concept is justified, the design process should treat the flexible circuit board as a critical reliability item from day one.

Start with the real operating conditions

Reliability starts before schematic capture or layout. A flexible circuit board must be specified around its actual operating environment, not only around electrical connectivity.

The most important distinction is whether the flex will be static or dynamic. A static flex is bent during assembly and then remains in position. A dynamic flex moves repeatedly during product use, for example in a robot joint, sliding sensor module, foldable mechanism or moving machine head. These two cases require very different design margins.

Document the following at the start of the project:

• Expected bend angle, bend radius and bend direction
• Number of flex cycles over the product lifetime
• Temperature range during operation, storage and transport
• Exposure to humidity, salt, oils, cleaning agents, fuels or UV
• Vibration, shock and mechanical handling loads
• Assembly sequence, service access and repair strategy
• Electrical loads, signal types, switching frequencies and EMC constraints

This information should not remain informal. It should become part of the requirements baseline, because it affects material selection, copper type, stack-up, connector choice, enclosure constraints, testing and supplier discussions.

A useful engineering principle is simple: if the flex circuit will be asked to move, the mechanical movement must be designed as carefully as the electronics.

Choose the right architecture, not just the thinnest board

A flexible circuit board can be implemented as a single-sided flex, double-sided flex, multilayer flex or rigid-flex assembly. The best choice depends on mechanical duty, signal density, assembly method and product risk.

Single-layer flex circuits are often easier to bend and can be highly reliable for simple interconnects. Double-sided and multilayer flex circuits support denser routing, shielding and controlled impedance options, but they are stiffer and more sensitive to bend fatigue. Rigid-flex designs remove connectors and cables between rigid sections, which can improve assembly and reliability, but they increase fabrication complexity and require stronger early collaboration with the manufacturer.

Architecture	Where it can fit well	Reliability concern to manage
Single-sided flex	Simple interconnects, sensors, static folds, low-density circuits	Limited routing density and return path options
Double-sided flex	More signals, some shielding or ground return needs	Higher stiffness and greater bend stress
Multilayer flex	Dense electronics where space is constrained	Higher fabrication complexity and limited suitability for repeated bending
Rigid-flex	Compact products, moving assemblies, reduced connector count	Requires careful stack-up, transition design and manufacturing control

Do not select the architecture only on layout convenience. A few extra routing layers may appear to solve an electrical problem, but they can create a mechanical reliability problem if they pass through a bend area. In many professional products, a mixed approach works best: rigid zones for components and dense routing, simple flex sections for movement or folding, and clear transition areas between them.

Design the stack-up around strain

The dominant mechanical risk in many flexible circuits is copper fatigue. When a flex bends, the outer layers stretch and the inner layers compress. The further the copper is from the neutral axis of the stack-up, the higher the strain.

A simplified way to think about strain is that it increases as total thickness increases and bend radius decreases. Keeping the flex thin, keeping bends generous and placing copper closer to the neutral axis all reduce stress.

Material selection matters. Polyimide is widely used for flexible circuits because of its thermal and mechanical properties. Adhesiveless copper-clad laminates are often preferred for demanding applications because they can reduce thickness and improve dimensional stability compared with some adhesive-based constructions. Rolled annealed copper is commonly used where repeated flexing is expected, because it has better fatigue behaviour than standard electrodeposited copper in many dynamic applications.

Coverlay choice is also important. Flexible circuits typically use polyimide coverlay rather than standard rigid-board solder mask in areas that must bend. Coverlay protects copper and insulation, but it also affects thickness, stiffness, registration tolerance and pad access. These details should be reviewed with the fabricator early, especially where fine pitch components, ZIF contacts or stiffeners are involved.

IPC-2223 and IPC-6013 are commonly used reference standards for flexible and rigid-flex printed board design and performance. They should not be treated as a substitute for engineering judgement, but they provide a valuable framework for stack-up, material and fabrication discussions.

Treat bend areas as mechanical design features

A bend area is not just unused space between two rigid sections. It is a mechanical feature with its own rules.

The first design goal is to avoid placing stress concentrators in the bend. Vias, plated through holes, solder joints, component pads, sharp track corners and abrupt copper width changes should stay out of bend zones wherever possible. These features create local stiffness changes and strain peaks that can initiate cracks.

The second goal is to maintain a smooth and predictable bend. Avoid forcing the flex to crease during assembly. The enclosure, fasteners, guides and neighbouring components should support a controlled bend radius. If the product relies on an operator to fold the circuit manually, the assembly process must include fixtures or mechanical guidance that prevent over-bending.

Bend design decision	Reliable practice	Risk if ignored
Bend radius	Use generous radii and confirm with the fabricator for the exact stack-up	Copper fatigue, coverlay cracking or insulation damage
Bend location	Keep bends away from pads, vias and component edges	Cracks at transitions and solder joint failures
Copper in bend	Use smooth, continuous traces with no abrupt changes	Local stress concentration and early fatigue
Mechanical support	Use guides, relief features or controlled assembly tooling	Creasing, inconsistent production quality and field failures
Dynamic movement	Validate with representative cycle testing	Lab prototype passes, field product fails

Minimum bend radius rules are often quoted as a multiple of flex thickness, but they should only be used as early estimates. Real limits depend on copper type, copper thickness, layer count, coverlay, adhesive system, temperature, bend angle and lifetime cycles. A static installation bend may tolerate a tighter radius than a dynamic flex that moves thousands or millions of times.

For safety-critical, high-value or difficult-to-service products, design with margin rather than at the theoretical minimum.

Route copper to reduce fatigue and electrical risk

Copper routing in a flexible circuit board must balance electrical performance with mechanical survivability. Tracks should pass through bend areas smoothly and consistently. Avoid sharp corners, sudden neck-downs and isolated copper islands in flexing sections.

Where traces must cross a bend, keep them as straight and evenly spaced as practical. On double-sided flex, avoid stacking traces directly above each other in dynamic bend regions, because this can increase local stiffness. Staggered routing can help distribute strain. Large solid copper areas should be avoided in flexing sections unless they are specifically required and mechanically assessed, because they increase stiffness and can encourage uneven bending.

For power electronics or motor drive applications, copper width and temperature rise become critical. A flexible circuit has less thermal mass than a conventional rigid PCB and may be enclosed in a space with limited airflow. Increasing copper thickness can reduce electrical resistance, but it also reduces flexibility. This trade-off must be evaluated at system level, not solved by layout rules alone.

In analogue and sensor circuits, leakage, noise pickup and impedance stability can be just as important as DC continuity. Flex circuits that run near motors, switching converters, antennas or long cable paths can become part of the EMC problem if return paths and shielding are not designed properly.

This is where general PCB reliability principles still apply. Power integrity, grounding, placement and routing all affect long-term behaviour, as explained in ProMicro's article on circuit board design decisions that shape reliability. The difference with flex is that every electrical decision also has a mechanical consequence.

Protect transitions, pads and connector areas

Many flexible circuit failures occur at transitions rather than in the middle of a bend. The boundary between a rigid section and a flex section is a high-risk area because stiffness changes suddenly. The same applies around stiffeners, connectors, soldered pads and mounting points.

Use gradual transitions where possible. Keep components away from the edge of stiffeners. Add teardrops or fillets to pads where appropriate to reduce stress concentration. Avoid routing tracks directly along the edge of a stiffener or rigid section if movement or vibration will load that edge.

Stiffeners are often essential, but they must be designed intentionally. FR-4, polyimide, stainless steel or other stiffener materials may be used depending on connector requirements, thermal constraints and mechanical loading. ZIF connector tails, for example, often require a controlled thickness and surface finish. If that thickness is wrong, assembly reliability can suffer even if the electrical design is correct.

Connector strategy is also a system-level decision. Flexible circuits can reduce connector count, but sometimes connectors are still needed for serviceability, modular assembly or replacement. The design team should decide early whether the product prioritises minimum interconnects, field repair, modular production or lowest assembly risk. These priorities can point to different flex architectures.

Design for EMC from the beginning

A flexible circuit board can behave like a cable, an antenna, a return path discontinuity or a shield, depending on how it is designed. For products subject to CE, RED, EMC or safety-related requirements, flex layout should be reviewed as part of the complete system architecture.

High-speed digital lines, motor control signals, switching power nodes and wireless interfaces need particular care. The return path should remain close and continuous. Loop areas should be minimised. Do not split ground or reference planes without understanding the current paths that result. If shielding layers, ground meshes or conductive films are used, their effect on flexibility, capacitance, impedance and assembly must be considered.

Controlled impedance is possible in flexible circuits, but the fabricator must provide realistic material data, stack-up tolerances and process capability. Polyimide thickness, adhesive layers, copper roughness and coverlay all influence impedance. For RF or high-speed digital interfaces, a flex design should not be released using assumptions copied from a rigid PCB stack-up.

EMC performance is also influenced by the enclosure, cable exits, bonding strategy, filters and grounding points. A flex circuit that routes through a hinge, motorised module or metal housing must be assessed in that physical context. For a broader view of these trade-offs, see ProMicro's guidance on how PCB board design affects reliability and EMC.

Make the board manufacturable before layout is finished

Flexible circuit manufacturing has constraints that differ from standard rigid PCB production. Coverlay registration, adhesive flow, material movement, laser drilling, plating quality, etching tolerance, stiffener placement and panel handling can all affect yield and consistency.

This is why early supplier involvement is important. A fabricator can advise on minimum track and gap, preferred via structures, copper type, bend recommendations, coverlay openings, panelisation and test coupon requirements. Waiting until Gerber release to ask for feedback can lead to redesigns, prototype delays or hidden production risks.

Assembly also deserves early attention. Flexible circuits are harder to handle than rigid boards. They may need carriers, fixtures, temporary stiffening or defined assembly sequences. Heat exposure during soldering can affect materials and adhesives. Components on flex or rigid-flex areas should be placed with vibration, thermal cycling and mechanical support in mind.

A reliable design for volume production should define:

• Fabrication stack-up, material family and copper type
• Bend zones, keep-out zones and minimum radii
• Stiffener material, thickness, outline and tolerance
• Coverlay openings and solderable finishes
• Assembly fixtures, handling constraints and inspection points
• Electrical test method and acceptance criteria
• Traceability needs for critical applications

A structured design-for-manufacturing review helps avoid expensive changes later. ProMicro's design for manufacturing PCB checklist is useful here because many DFM principles become even more important when flex materials, movement and tight packaging are involved.

Validate with representative prototypes, not idealised samples

A prototype flexible circuit board should represent the final mechanical and manufacturing intent as closely as possible. If the prototype uses different materials, different bend radii, different stiffeners or a simplified enclosure, test results may not predict field reliability.

Validation should combine electrical, mechanical, environmental and assembly tests. Continuity testing alone is not enough. A flex circuit may pass a static electrical test but fail after vibration, repeated motion or temperature cycling. For dynamic applications, continuity should ideally be monitored during movement, because intermittent faults are often more revealing than permanent opens.

Common validation activities include bend cycle testing, thermal cycling, vibration and shock testing, insulation resistance testing, solder joint inspection, connector insertion and retention checks, and EMC pre-compliance evaluation. The exact test plan should reflect the product's risk profile. A medical sensor, maritime control unit, automotive module and robot end effector will not need the same qualification approach.

It is also good practice to inspect failed samples physically, not only record that they failed. Cross-sectioning, microscopy and supplier feedback can show whether the root cause is copper fatigue, plating weakness, adhesive delamination, poor transition design, handling damage or an assembly process issue.

Think about lifecycle and maintainability

Reliable product development does not end when the first production batch works. Flexible circuit boards are often custom parts, which means lifecycle management should be part of the design process.

Consider whether the material system, copper type, surface finish and connector platform will remain available for the expected product life. Define whether an alternative fabricator can build the same design without major changes. Keep controlled documentation for stack-up, bend regions, stiffeners and process notes, not just the electrical layout files.

Service strategy also matters. If the flex is embedded deep inside a machine or sealed enclosure, replacement may be expensive or impossible. That increases the need for conservative design margins and validation. If the flex is a serviceable module, connector durability, access, handling instructions and spare part consistency become more important.

Clear documentation also supports technical communication beyond the engineering team. For companies bringing complex industrial products to market, explaining reliability decisions clearly can help sales teams, distributors and customers understand the product value. In that context, specialist support in B2B industrial marketing can be useful when translating robust engineering work into credible market-facing communication.

Common flexible circuit board failure modes

The table below summarises frequent problems and the design actions that reduce their likelihood.

Failure mode	Typical cause	Prevention approach
Cracked copper in bend	Bend radius too tight, unsuitable copper, excessive thickness or repeated flexing	Use dynamic-rated materials, increase radius, reduce layers in bend and validate cycle life
Pad or solder joint failure	Components too close to flexing zones or unsupported transitions	Use stiffeners, keep-outs, strain relief and controlled assembly support
Coverlay cracking or delamination	Excessive bending, poor material match or process stress	Review coverlay design, adhesive system, bend geometry and thermal exposure
Intermittent connection	Motion-induced fatigue or connector instability	Test under movement, improve connector support and reduce mechanical loading
EMC issues	Large loop areas, poor return paths or flex acting as an antenna	Design controlled return paths, shielding and grounding within the full system context
Production variation	Unclear material, stiffener, coverlay or inspection requirements	Define fabrication notes, tolerances, acceptance criteria and supplier controls

Practical checklist for a reliable flexible circuit board

Before releasing a flex or rigid-flex design, the team should be able to answer these questions with evidence, not assumptions:

• Is the flex static or dynamic, and is the expected lifetime movement defined?
• Are bend radii based on the final stack-up and fabricator guidance?
• Are vias, pads, components and stiffener edges kept out of bend zones?
• Is the copper type suitable for the mechanical duty cycle?
• Are power, thermal and EMC requirements reviewed at system level?
• Are connector and stiffener dimensions controlled for assembly?
• Has the design been reviewed for DFM, handling and inspection?
• Do prototypes match the intended production construction?
• Is validation based on real mechanical movement and environment?
• Are lifecycle, second-source and service requirements documented?

If any of these answers are unclear, the risk is not only a failed PCB. The risk is a product delay, certification issue, field failure, warranty cost or redesign that could have been avoided with earlier system engineering.

Frequently asked questions

What is the main difference between a flexible circuit board and a rigid PCB? A rigid PCB is primarily designed as a stable electrical platform, while a flexible circuit board must also function as a mechanical element. Its reliability depends on bending, strain, material choice, routing, transitions and assembly handling as much as on the schematic.

Can components be mounted on a flexible circuit board? Yes, components can be mounted on flex, but it must be done carefully. Components should usually be placed in supported areas, often with stiffeners or rigid sections, and kept away from bend zones or high-strain regions.

What is a safe bend radius for a flexible circuit board? There is no universal safe bend radius. It depends on total thickness, copper type, layer count, coverlay, bend angle, temperature and whether the flex is static or dynamic. Use IPC guidance, fabricator input and product-specific validation rather than a generic rule.

Is rigid-flex more reliable than using connectors and cables? It can be, especially when it reduces connector count and assembly variation. However, rigid-flex also increases fabrication complexity and requires careful design of stack-up, transitions and manufacturing controls. The best choice depends on the product architecture and service strategy.

How early should a flex circuit manufacturer be involved? Ideally before the layout is finalised. Fabricator input on materials, bend limits, coverlay openings, stiffeners, panelisation and inspection can prevent redesigns and improve production consistency.
